VF1Field Of View Measuring System
VF1 is a compact and high-precision desktop measurement machine. The system is well suited for quick and precise measurements, without the need for focus adjustments. VF1 touch panel allows users to automatically search for measurement programs, execute them, and display measurement results. The system includes the next generation of InSpec Metrology Software that has advanced edge detection algorithms that provide superior performance with sub-pixel accuracy and repeatability. InSpec Metrology Software controls imaging, and lighting resulting in high accuracy measurement systems. The VF1 features a compact profile light design.
VF1 Features
cameraSingle Snapshot Measurement
Large Measurement Range
High Resolution Camera
Compact Profile Light Design
Automatic Part Identification
Scratch Resistance Stage GlassProduct Overview Document
VF1 Specifications
| Measurement Capacity | XY Accuracy | Measurement Range | ||||
|---|---|---|---|---|---|---|
| 69.3 × 49.6 mm |
| 30 mm |
1 Within operating temperature of 20.0℃ ± 1℃ at the focal point position.
2 L is in mm.
3 Up to lengths of 75 mm.
4 Using Micro-Vu Calibration Artifact
| Machine Dimensions | Machine Weight | Starting Price |
|---|---|---|
| 187 × 394 × 464 mm | 20 kg | US$11,000* |
Product information is subject to change without prior notice as a result of ongoing technical development.
*U.S. price shown for complete measuring system including InSpec Metrology Software. Pricing subject to change without notice.
InSpec for VF1

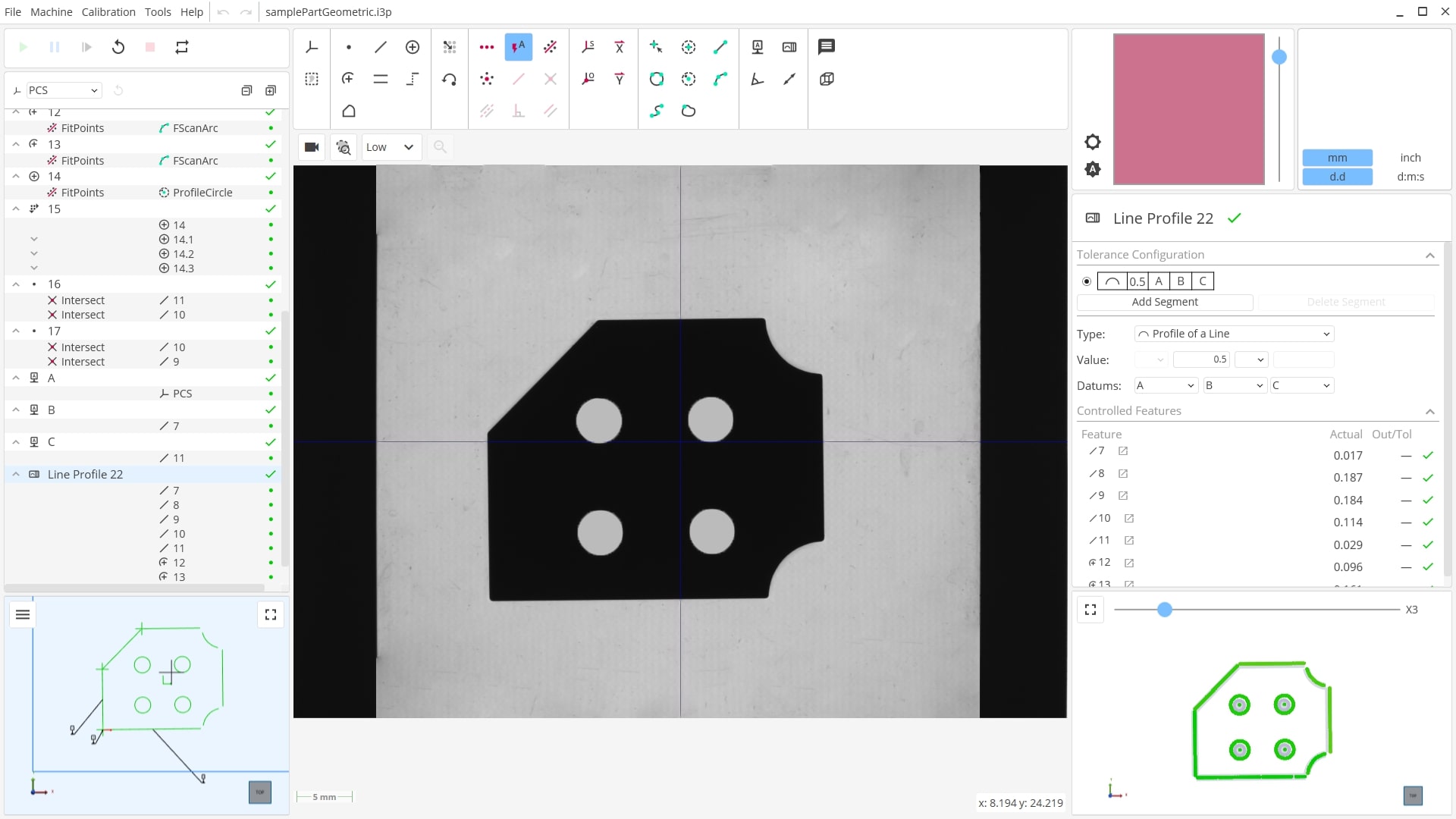

Designed to work seamlessly with the VF1, InSpec software provides the tools needed for creating repeatable measurement processes with efficiency and precision. InSpec utilizes advanced edge detection algorithms to quickly detect and measure features with sub-pixel accuracy and repeatablility.
Efficient Program Design
- Import nominal values from 3D Cad models or based on reference part measurements

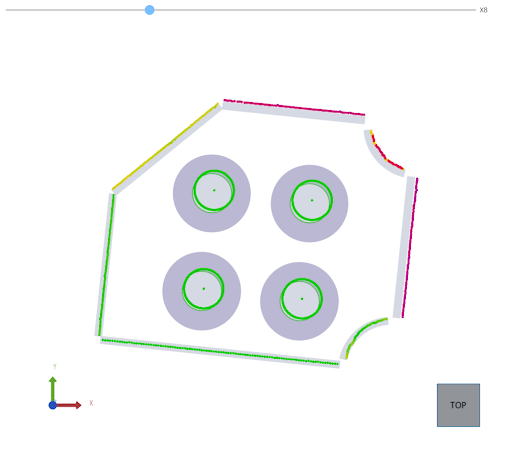

- Profile Evaluation using advanced fit strategies.
- Colored datapoint indicators provide conclusive results
Report Automation

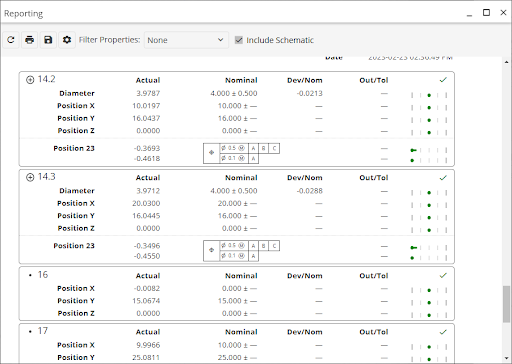

- Automatically record data and print an inspection report
- Export measurement results and data automaticaly after completing measurements
